Tyvok Spider X1S 20W Large-Format Laser Engraver

A 20 W diode laser whose standard 400 × 400 mm frame switches to an extension mode for engraving and cutting up to 800 × 2000 mm. It cuts 8 mm basswood in one pass, and a 27 L air assist comes in the box.

~~$799.99~~

6%$749.99

Price with code · Geekbuying · as of 2026-10-09

Code CONSUM50 · 8% off

max $50 · until 2027-05-31

Copy code & shop Geekbuying

~~$799.99~~6%$749.99Copy code & shop Geekbuying

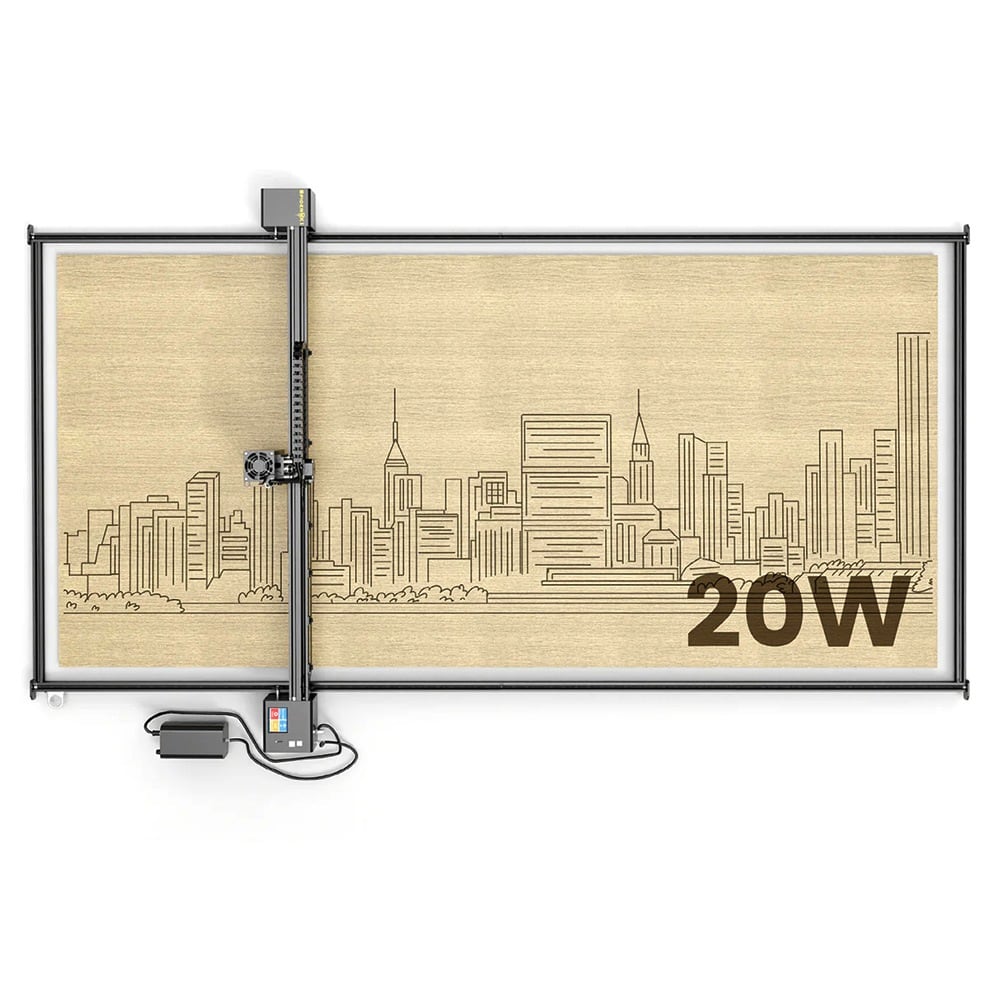

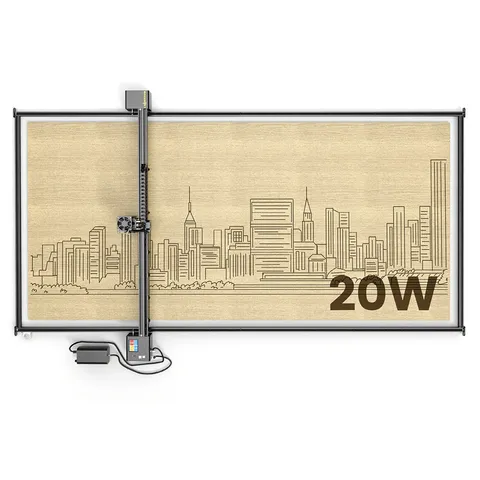

A city skyline engraved on the long extended frame

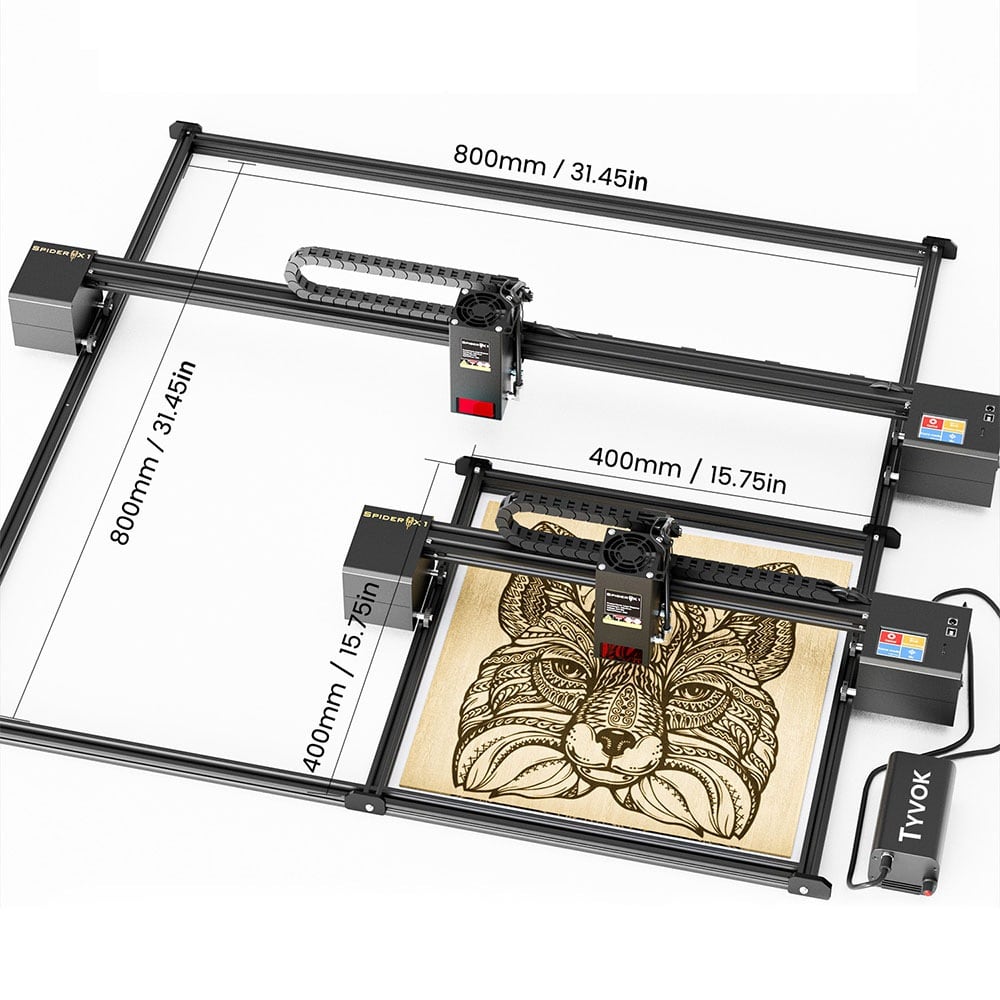

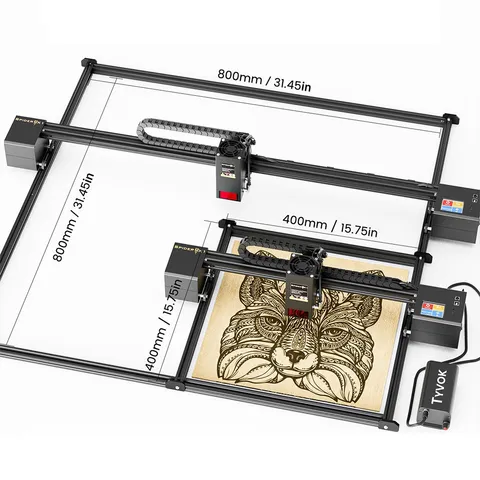

1Up to 800 × 2000 mm in extension mode

Use the 400 × 400 mm frame day to day, then extend the XY axes for signs and long boards up to 800 × 2000 mm in a single job.

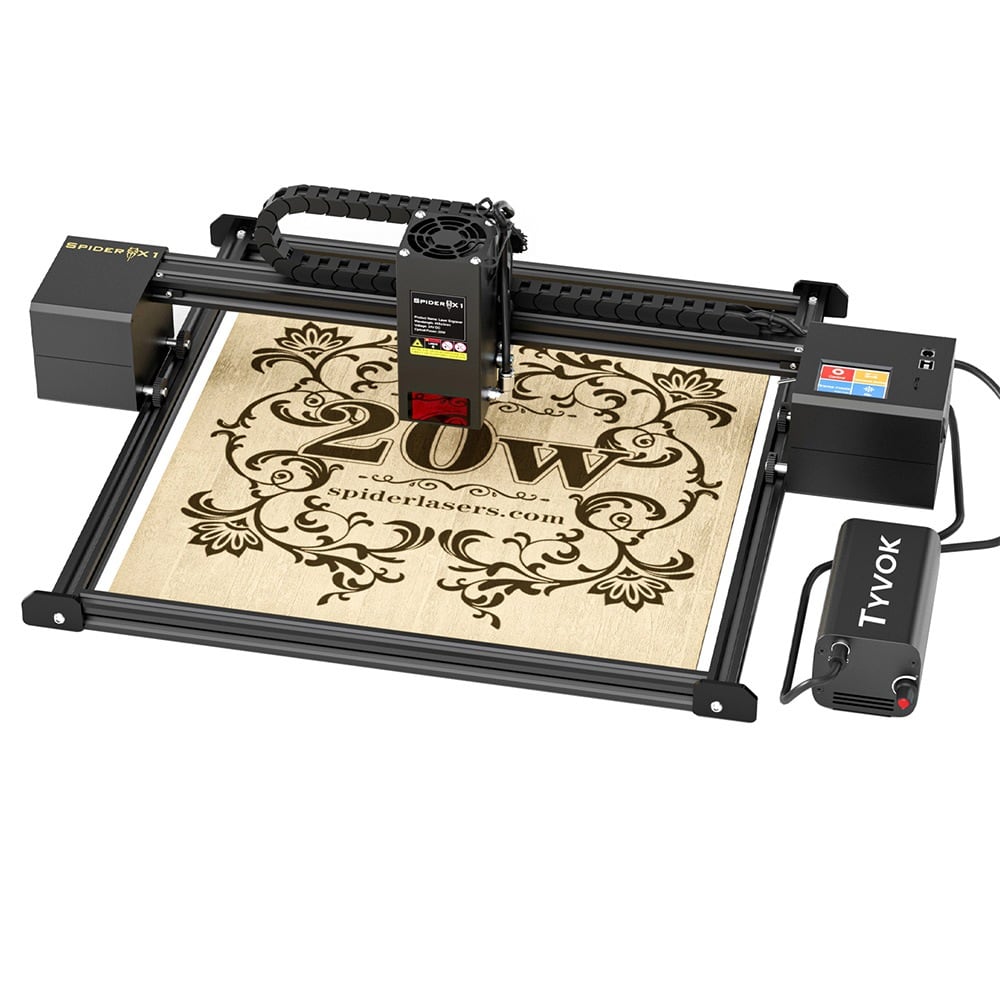

The standard 400 × 400 mm frame and controller

220–24 W module, 0.08 × 0.06 mm spot

The 455 nm diode module delivers 20–24 W and moves at up to 24,800 mm/min. It handles wood, bamboo, rubber, acrylic, fabric, plastic and coated stainless steel or aluminium.

3Wi-Fi, offline jobs and air assist

Send jobs over Wi-Fi, the web interface or a TF card, with LightBurn and LaserGRBL support. The box includes the 27 L Air Assist Pro II and four 250 × 250 mm honeycomb panels.

Key specs

Laser power: 20–24 W · 455 nm
Work area: 400 × 400 mm / 800 × 2000 mm
Speed: 24,800 mm/min
Power input: AC 100–240 V → DC 24 V 5 A
Weight: 4 kg
Ships from: US warehouse

Good pick if

You want to engrave signs and long boards in one piece
You often cut 8 mm wood

Think twice if

You want an engraver with a closed enclosure

FAQ

Is there a promo code?

Yes. Enter CONSUM50 at Geekbuying checkout when buying the Tyvok Spider X1S 20W Large-Format Laser Engraver for 8% off. Conditions: max $50 · until 2027-05-31.

What’s in the box?

The Spider X1S, frame parts, goggles, a 24 V adapter and cable, four 250 × 250 mm honeycomb panels, the Air Assist Pro II (27 L), a cleaning cloth and brush, a cable tie, a stylus, a Wi-Fi antenna, a card reader and four Allen keys.

Which voltage does it need?

The adapter takes 100–240 V AC at 50/60 Hz, so it works on any mains voltage. It ships from the US warehouse.
