1Board, battery and case together

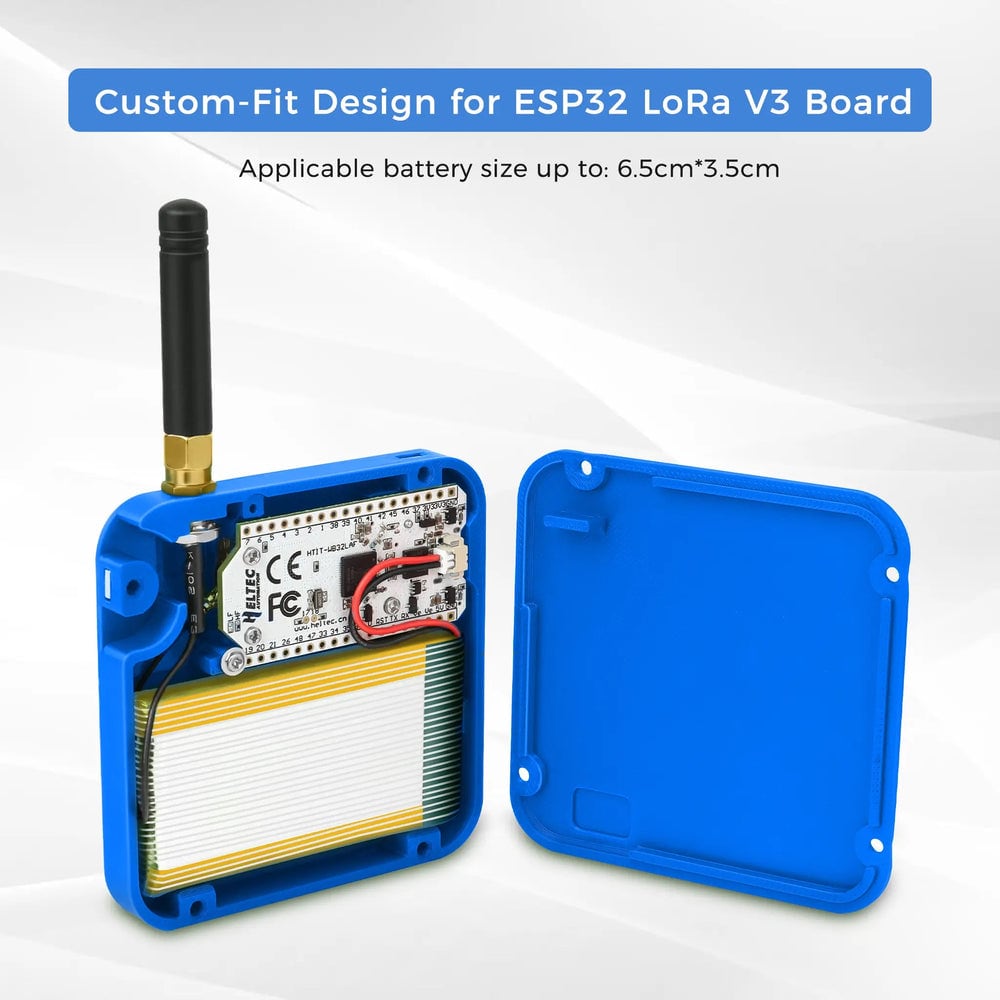

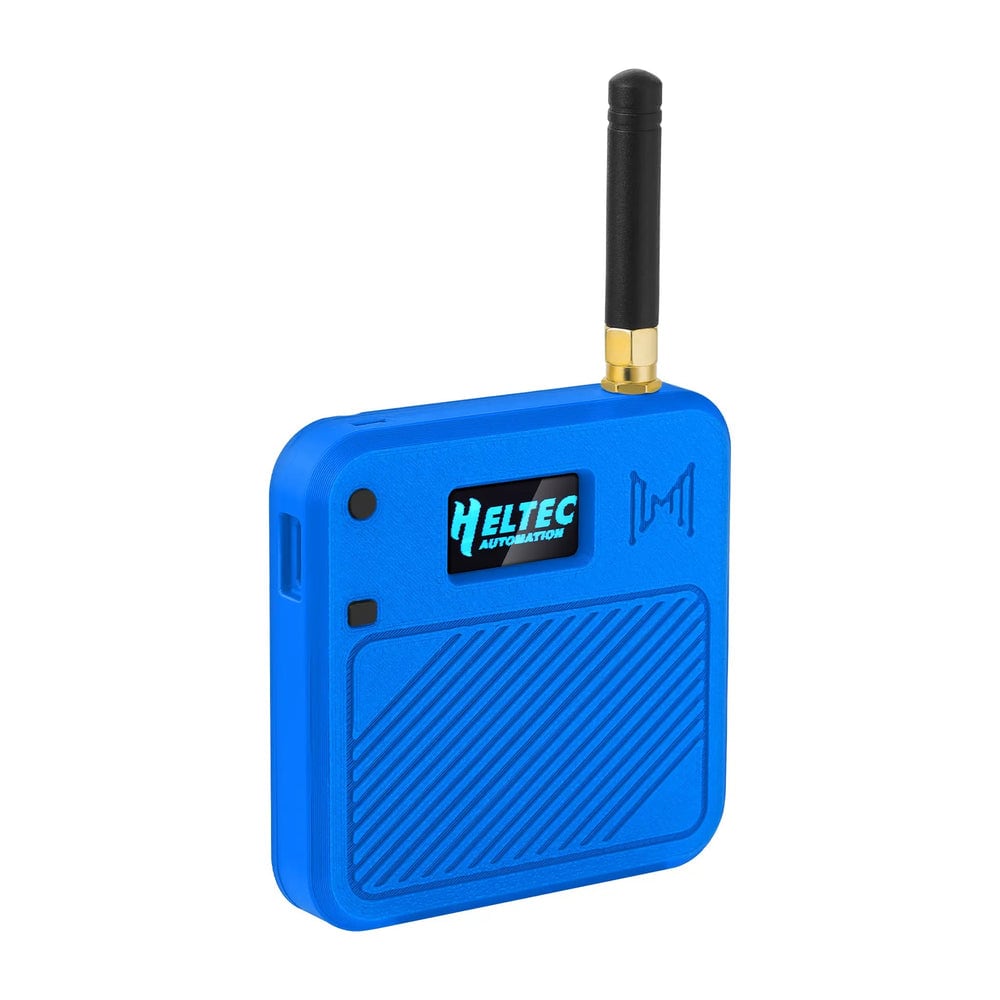

The board comes pre-installed, with a 3,000 mAh battery, an 863–928 MHz antenna and the N32 case.
- Home
- Products
- Maker & DIY
- LoRa & mesh radios
- N32 ESP32 LoRa V3 Meshtastic node kit
A palm-sized square node-15%CODENEWMESH15Meshnology N32 ESP32 LoRa V3 Meshtastic node kit
Meshtastic is an off-grid mesh network for sending text messages over LoRa radio, with no phone signal needed. The N32 puts an ESP32 LoRa V3 board with ESP32-S3 and SX1262 into a 3D-printed case, with a 3,000 mAh battery and an antenna.
15%$38.24
Price with code · Meshnology · as of 2026-10-09Code NEWMESH15 · 15% off
first order
2Up to 21 dBm, −134 dBm
The SX1262 transmits at up to 21 ± 1 dBm and receives down to −134 dBm at SF12, alongside Wi-Fi and Bluetooth 5 (BLE).
3Ready for code too
GPIO, I2C, SPI, UART and ADC are exposed, and it works with Arduino, ESP-IDF, PlatformIO and MicroPython.
Key specs
- MCU
- ESP32-S3FN8 (up to 240 MHz)
- LoRa
- SX1262, 21 ± 1 dBm
- Connectivity
- Wi-Fi 802.11 b/g/n, Bluetooth 5 (BLE)
- Memory
- 8 MB Flash / 512 KB SRAM
- Battery
- 3.7 V 3,000 mAh (protected)
- Operating temp.
- -20 – 70 °C
Good pick if
- You want a node that is ready without assembly
- You want to pick blue, red or green
Think twice if
- You want GPS included
FAQ
Is there a promo code?
Yes. Enter NEWMESH15 at Meshnology checkout when buying the Meshnology N32 ESP32 LoRa V3 Meshtastic node kit for 15% off. Conditions: first order.
How many sets is the price for?

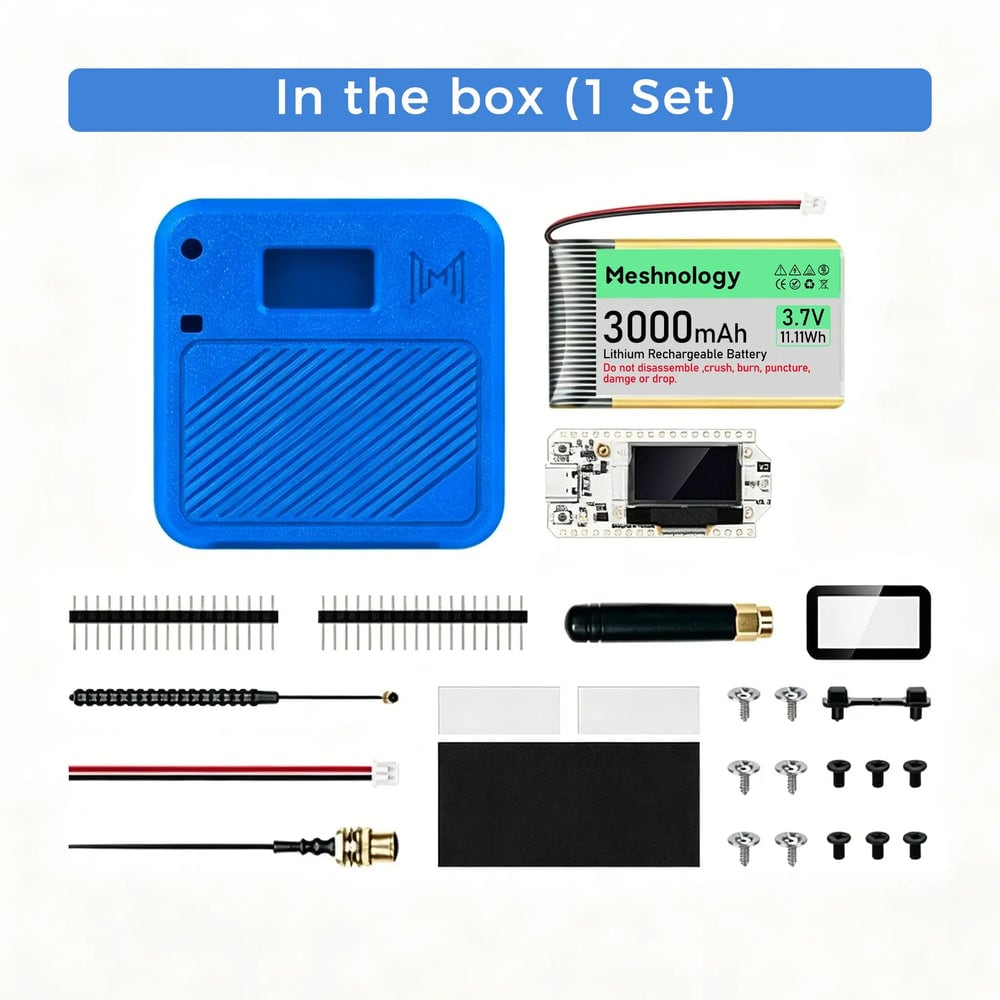

The $44.99 here is for 1 set with board, battery and case. Two sets are $82.99, and the case alone is $11.99.
Is a cable included?
The store lists a USB Type-C cable, or header accessories instead depending on the batch.
