110 mm wood in one pass
The 12 W beam, compressed to 0.06 × 0.08 mm, cuts 10 mm basswood and 5 mm black acrylic in one pass, and 15 mm basswood or 12 mm black acrylic with several.
- Home
- Products
- Maker & DIY
- Laser engravers
- X3S 12W Laser Engraver
A roomy 360 × 360 mm bed-8%CODECONSUM50X3S
Mecpow X3S 12W Laser Engraver

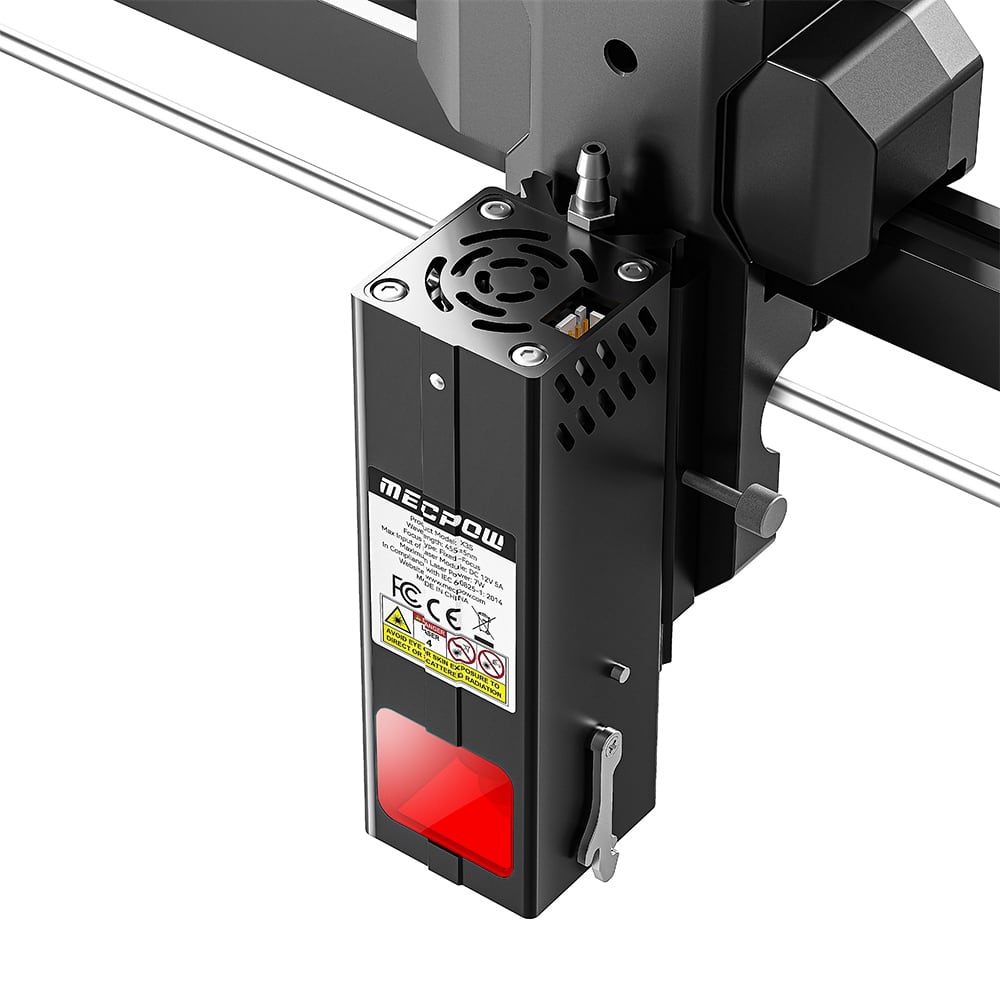

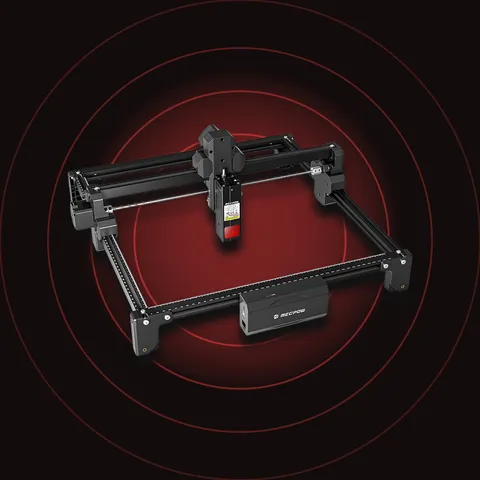

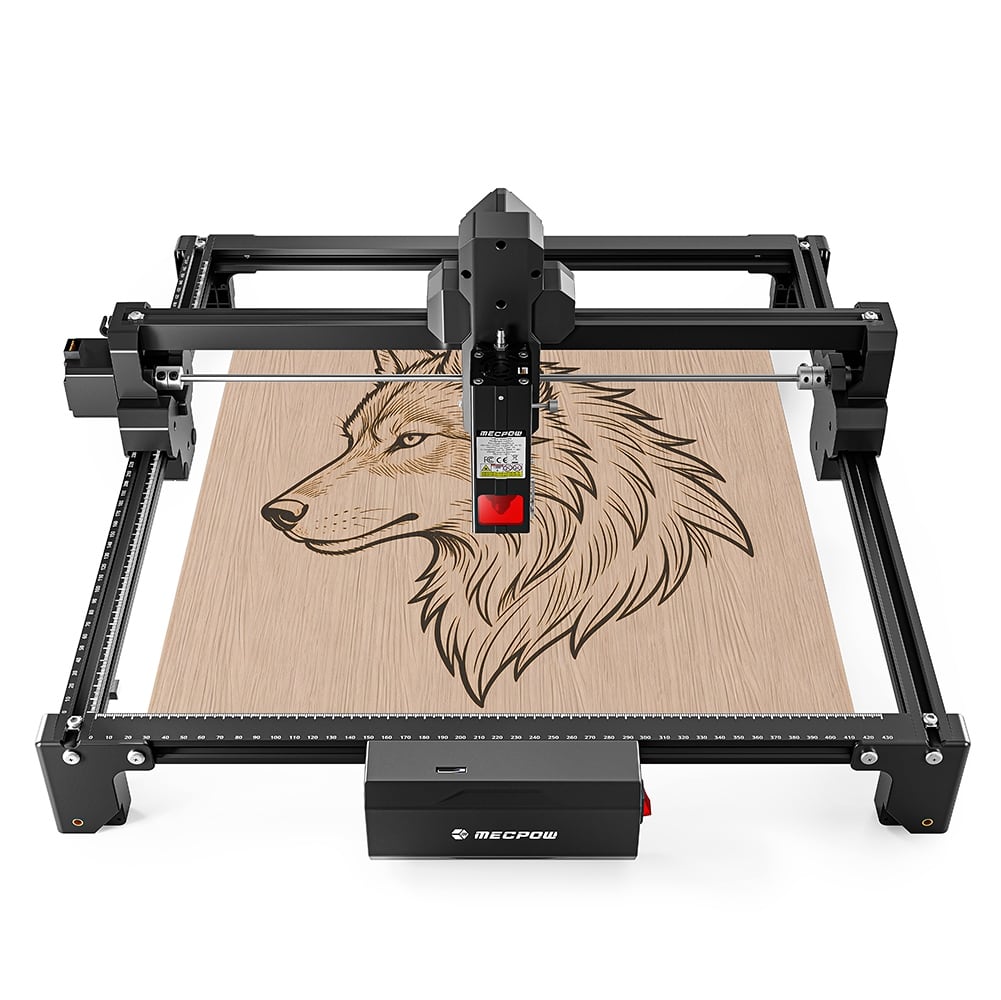

An open-frame laser engraver that combines two 7 W diodes with beam compression into a 12 W beam. It engraves a 360 × 360 mm area at up to 10,000 mm/min and takes jobs over Wi-Fi, USB or TF card.
8%$220.16
Price with code · Geekbuying · as of 2026-10-09Code CONSUM50 · 8% off
max $50 · until 2027-05-31
210-minute setup, big bed

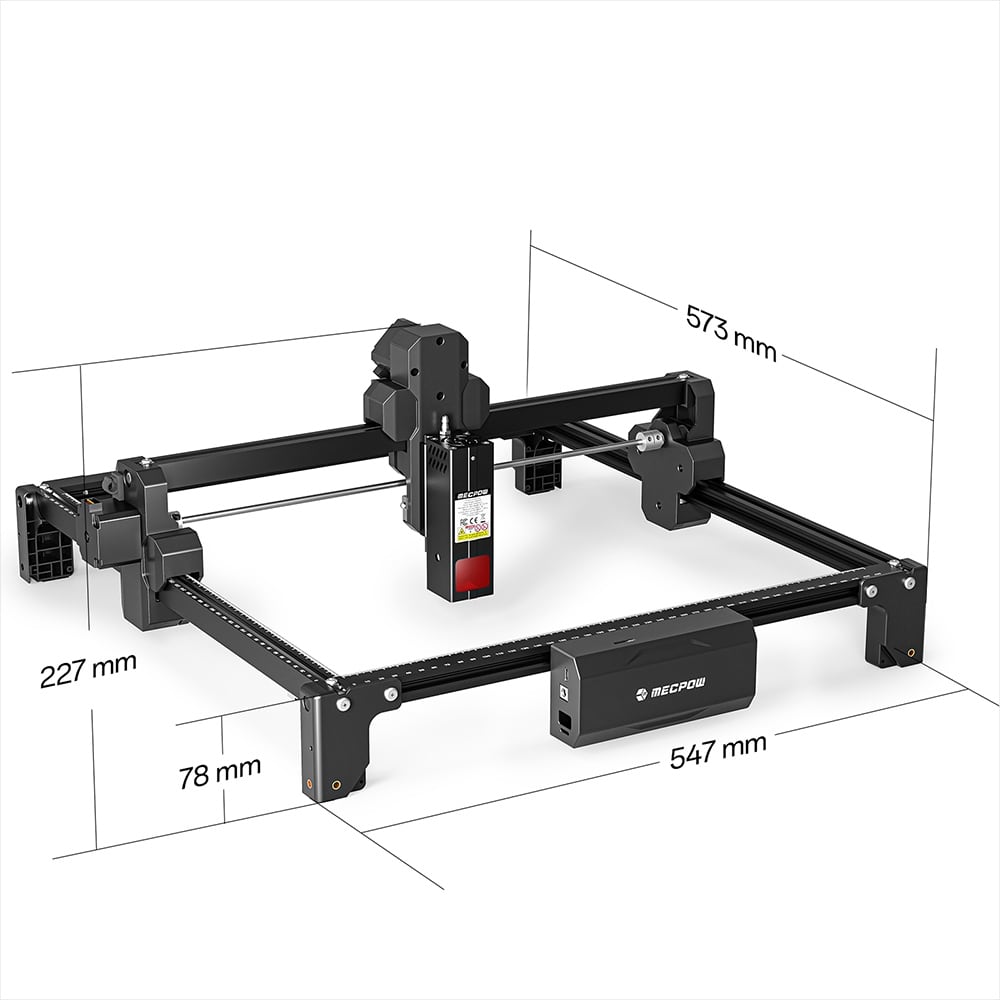

It arrives 50 % pre-assembled and sets up in about 10 minutes. The standard 360 × 360 mm area grows to 360 × 730 mm with the extension kit, sold separately.
3Safety features and scales

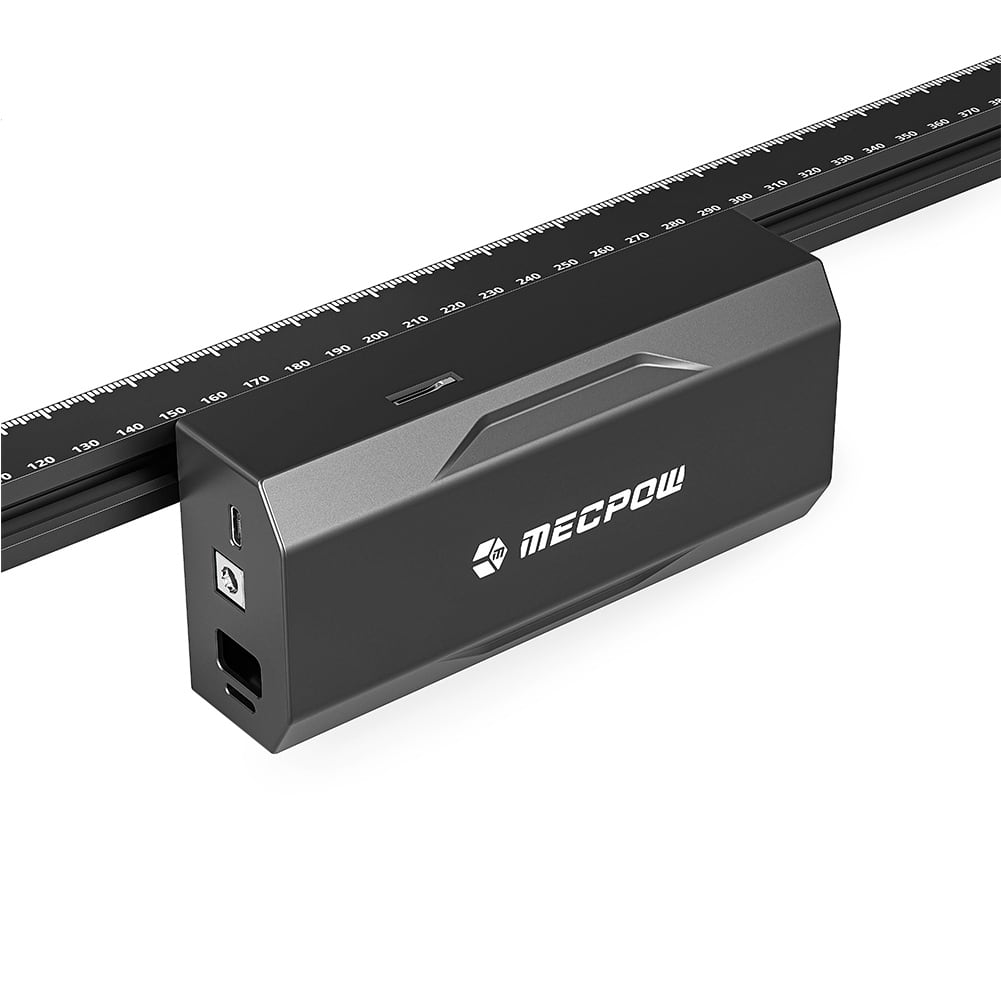

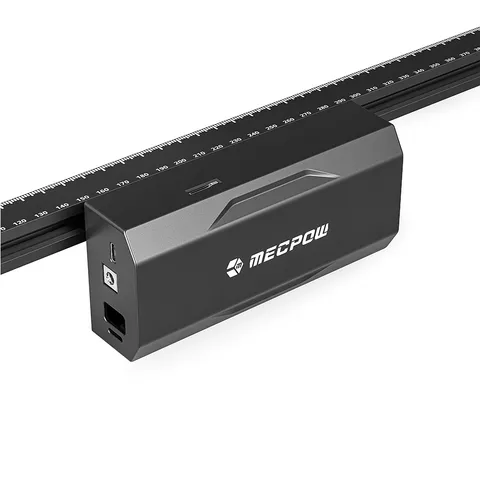

A removable laser cover and goggles are included, and it stops with an alarm if tilted 15 ± 5°. Limit switches keep the head in range, and XY scales let you measure at a glance.
Key specs
- Laser
- 12 W (2 × 7 W diodes)
- Work area
- 360 × 360 mm (360 × 730 mm extended)
- Speed
- Up to 10,000 mm/min
- Spot
- 0.06 × 0.08 mm
- Connection
- Wi-Fi, USB, TF card
- Software
- LightBurn, LaserGRBL, MKS
Good pick if
- You make signs and larger plaques
- You’re new to laser engraving
Think twice if
- You want to mark metal or plastic out of the box
FAQ
Is there a promo code?
Yes. Enter CONSUM50 at Geekbuying checkout when buying the Mecpow X3S 12W Laser Engraver for 8% off. Conditions: max $50 · until 2027-05-31.
Can it engrave metal?
With the optional 1.2 W infrared module, sold separately, it can engrave plastics and metals such as gold, silver and stainless steel.
Does it take a rotary?
Yes. It works with Mecpow’s G3 Pro and G5 rotary rollers, the P50 fume extractor, the FC1 enclosure and the MC5 camera, all sold separately.
