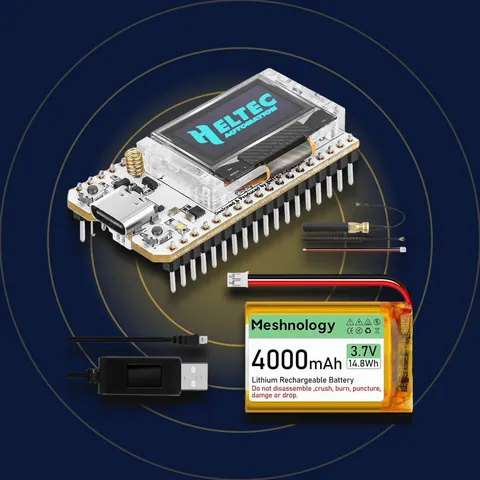

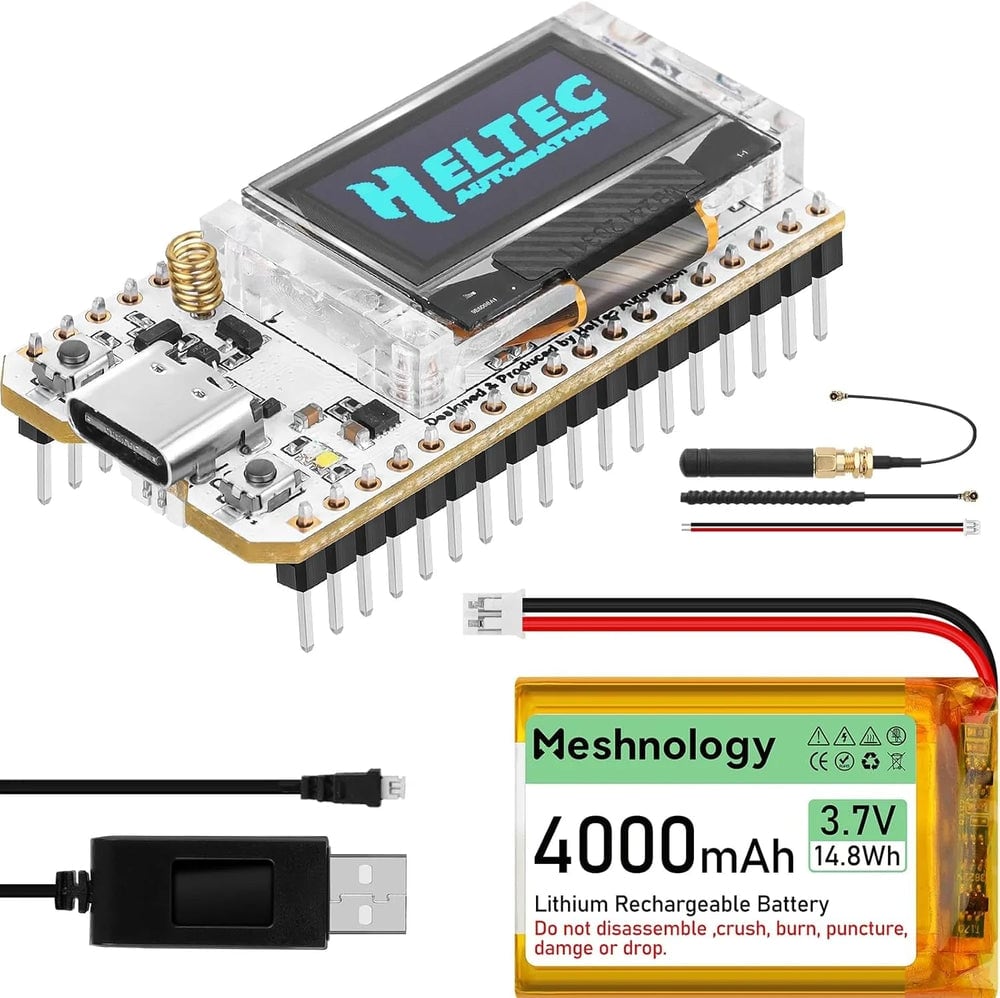

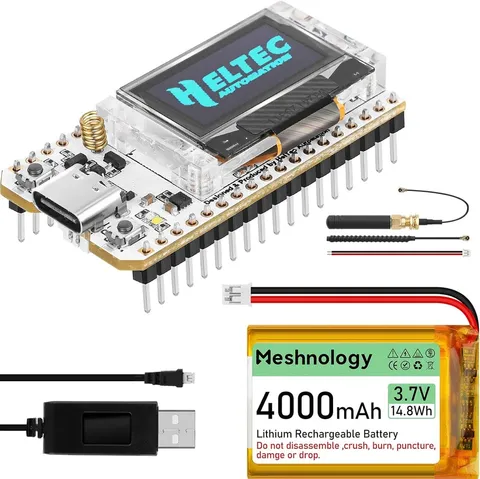

Meshnology ESP32 LoRa V3 board kit with 4,000 mAh battery

A development kit that bundles an ESP32-S3 LoRa V3 board with a 4,000 mAh battery, a USB charging cable and a 915 MHz antenna, for trying LoRa, Wi-Fi and Bluetooth on one board.

~~$35.99~~

15%$30.59

Price with code · Meshnology · as of 2026-10-09

Code NEWMESH15 · 15% off

first order

Copy code & shop Meshnology

~~$35.99~~15%$30.59Copy code & shop Meshnology

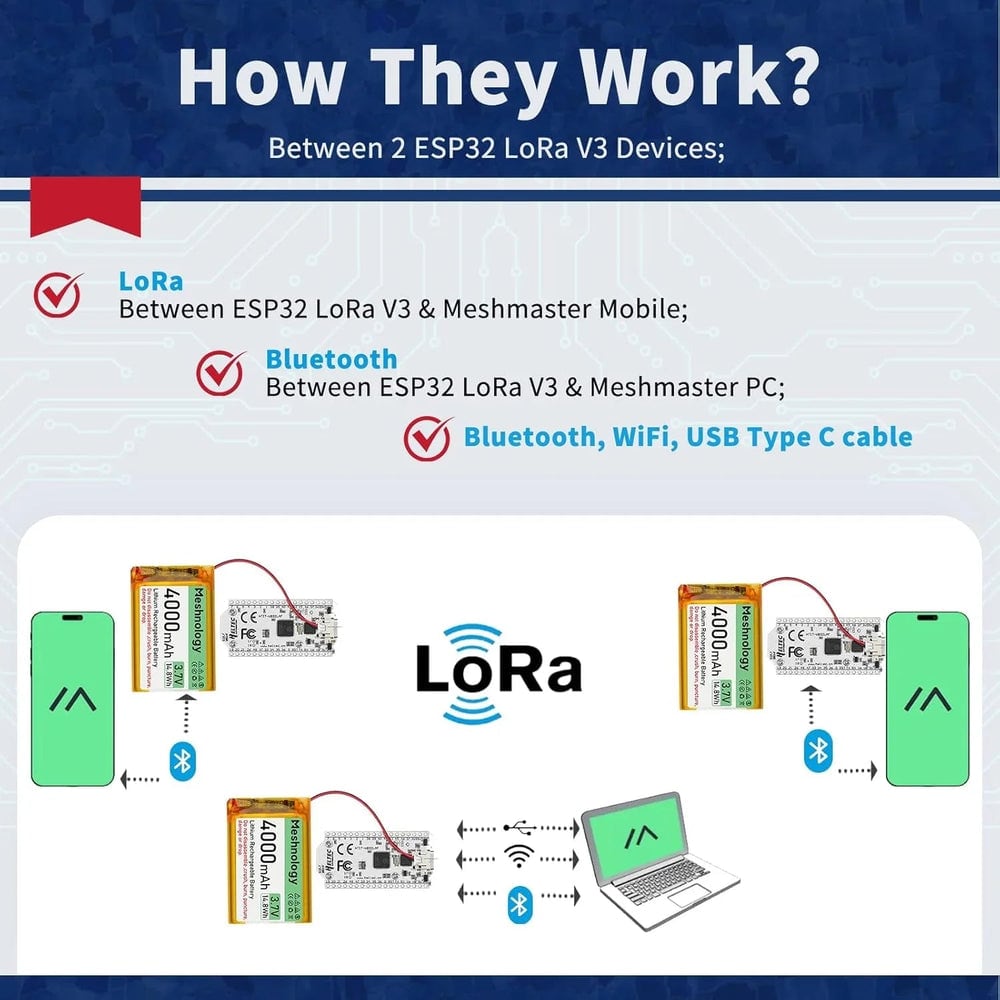

1LoRa, Wi-Fi and Bluetooth

Boards talk to each other over LoRa and to a phone or PC over Bluetooth, Wi-Fi or USB-C, suited to remote sensor networks and Meshtastic-style use.

2Long runs on 4,000 mAh

A 4,000 mAh lithium battery plugs into the JST 1.25 port. It measures 65 × 40 × 12 mm, weighs 60.2 g and takes about 13.5 hours to charge with the cable.

3A board with a 0.96-inch OLED

An ESP32-S3 dual-core at up to 240 MHz carries a 128 × 64 OLED for live status, and GPIO, UART and I2C take extra modules.

Key specs

MCU: ESP32-S3 dual-core (up to 240 MHz)
Connectivity: LoRa, Wi-Fi 802.11 b/g/n, Bluetooth
Screen: 0.96-inch OLED (128 × 64)
Battery: 4,000 mAh, JST 1.25
Antenna: 915 MHz
Toolchains: Arduino IDE, ESP-IDF

Good pick if

You want a cheap way into LoRa development
You are building a long-running prototype

Think twice if

You want a finished device with a case (no case is included)

FAQ

Is there a promo code?

Yes. Enter NEWMESH15 at Meshnology checkout when buying the Meshnology ESP32 LoRa V3 board kit with 4,000 mAh battery for 15% off. Conditions: first order.

How many sets is the price for?

The $35.99 here is one set with board, 4,000 mAh battery, USB charging cable and 915 MHz antenna. Two sets are $61.99.

Is there a case?

No. The box holds the board, battery, USB charging cable and antenna only. For a cased kit, see the N32 or N33.
