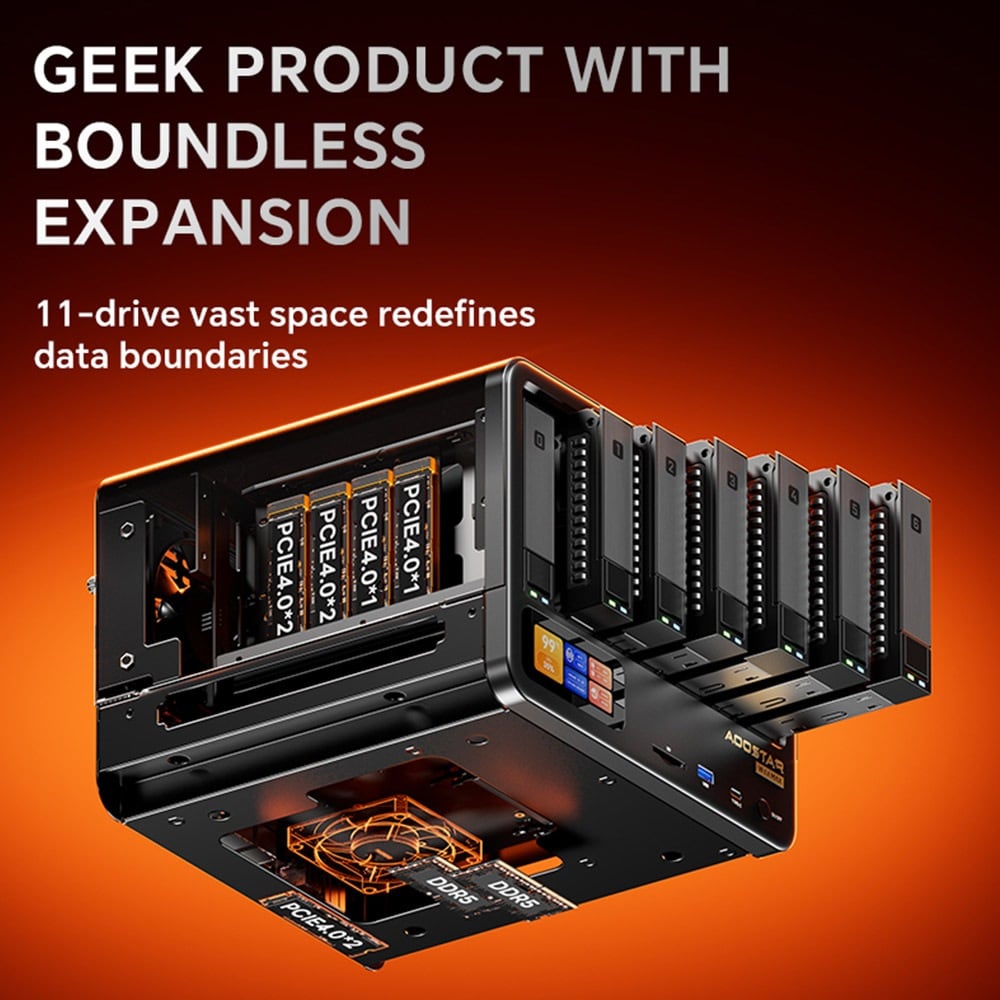

1Room for 11 drives
It takes up to 11 drives, with RAID to separate hot and archived data. AOOSTAR-NAS software shows CPU, GPU and memory status live.
- Home
- Products
- Electronics
- PC accessories
- WTR MAX 11-Bay NAS Mini PC Barebone
A home NAS with Ryzen 7 PRO and two 10GbE ports-6%CODE26BTS01WTR MAX
AOOSTAR WTR MAX 11-Bay NAS Mini PC Barebone

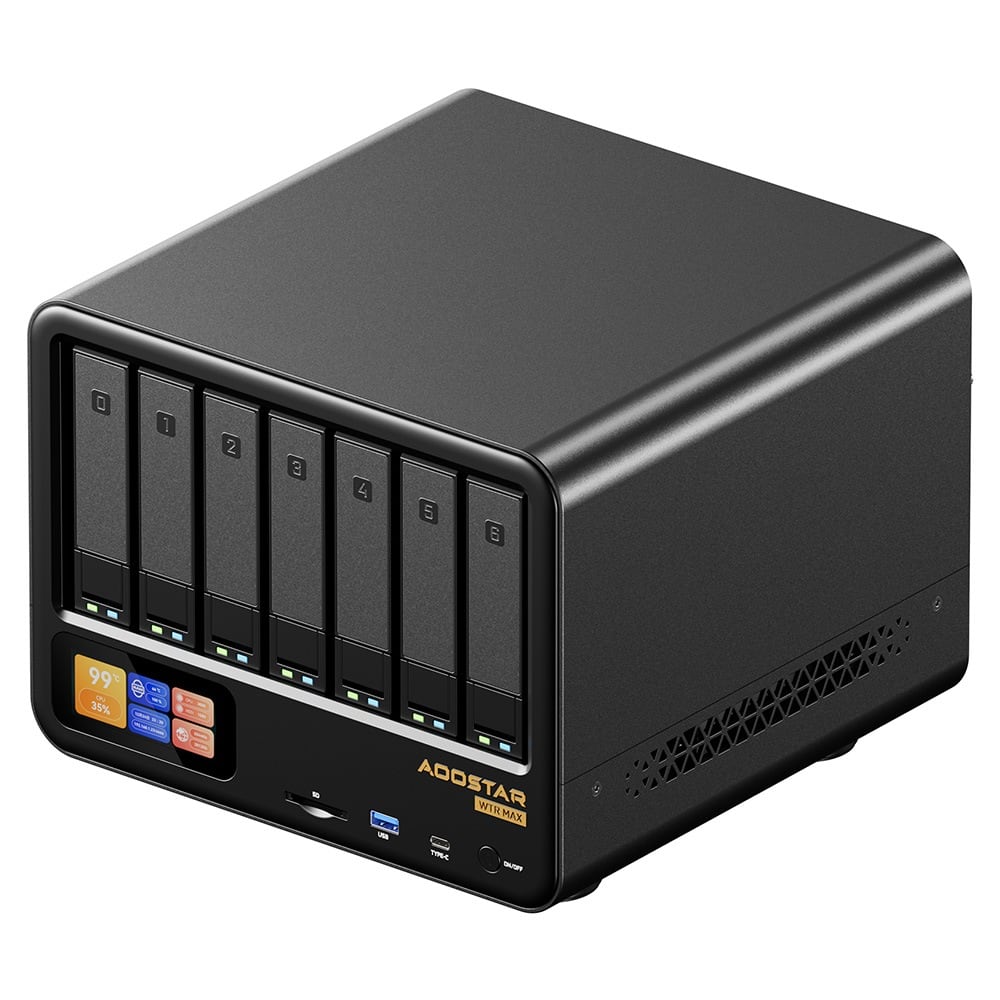

An 11-drive NAS and mini PC barebone built on the AMD Ryzen 7 PRO 8845HS. With two 2.5GbE ports, two Intel X710 10GbE SFP+ ports, USB4 and OCuLink, it suits a home or small-office server. Memory and drives are not included.
2%$849.14
Price with code · Geekbuying · as of 2026-10-09Code 26BTS01 · 6% off
max $20 · orders over $50 · until 2026-10-31

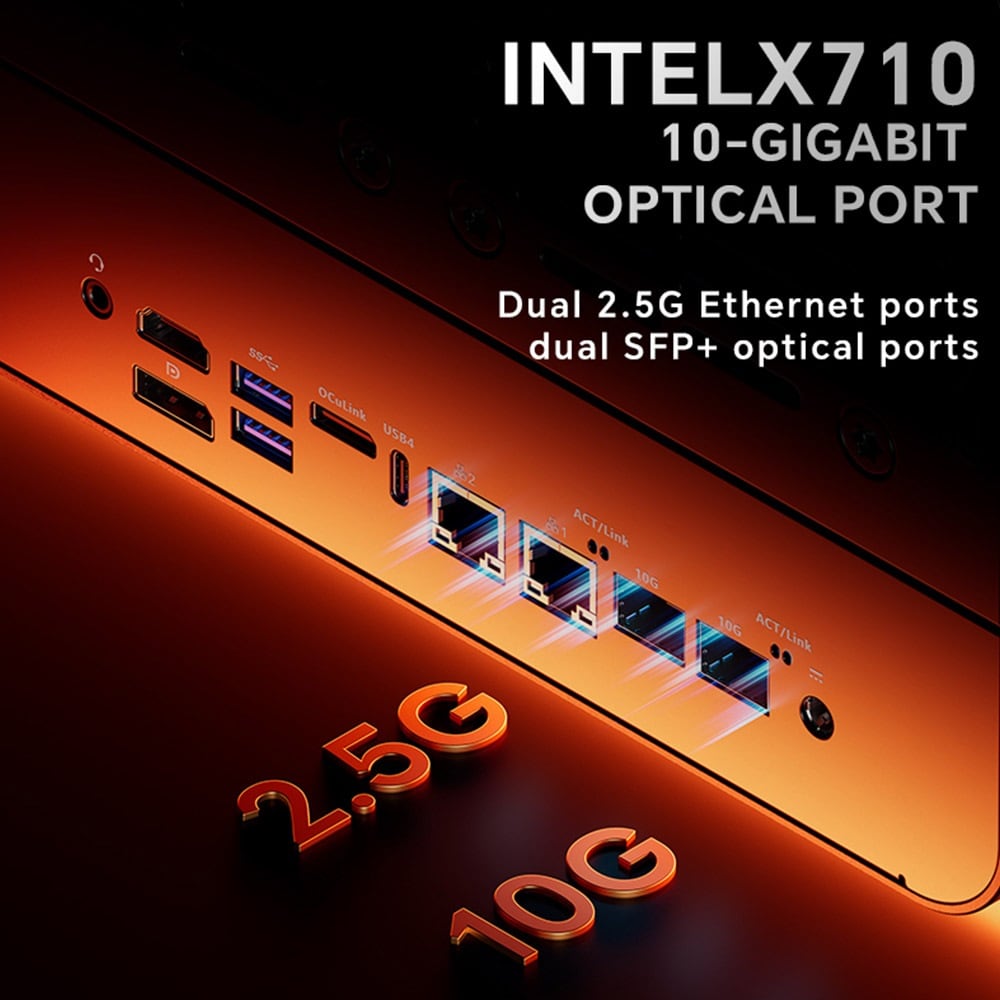

2Two 10GbE SFP+ ports

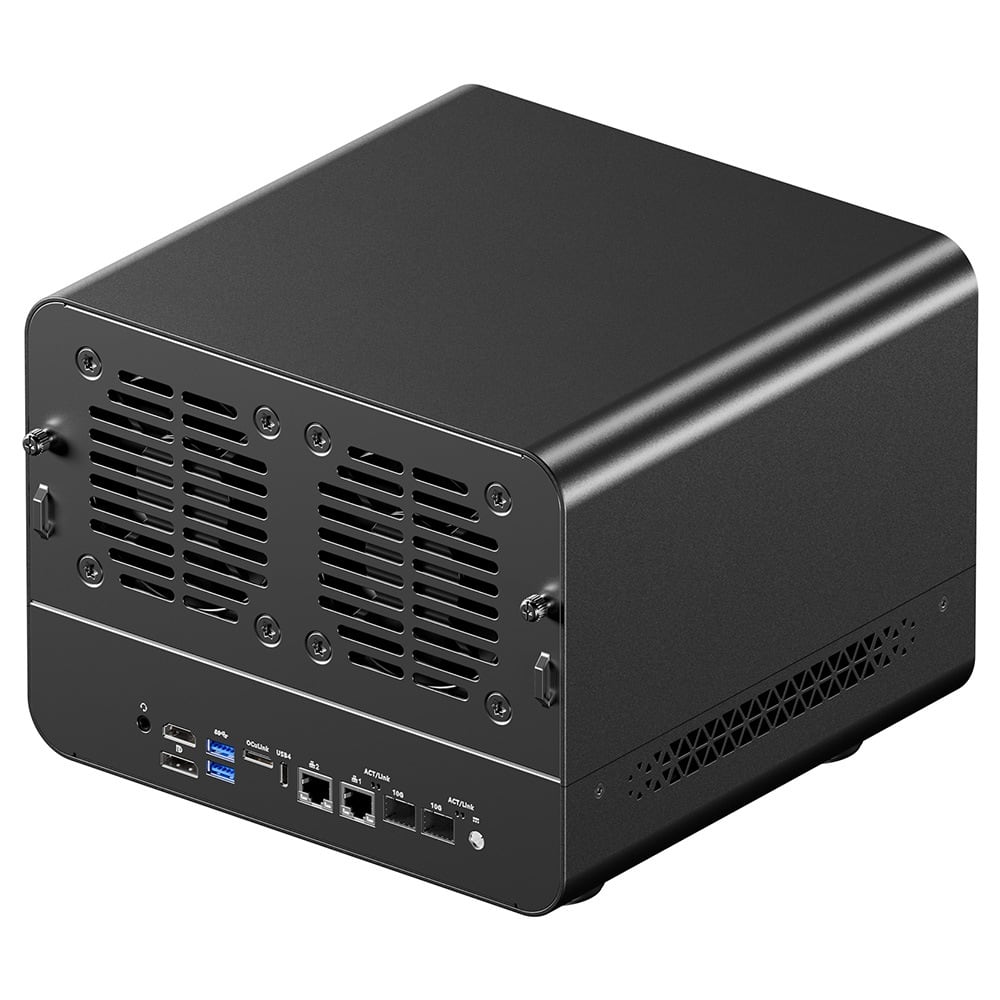

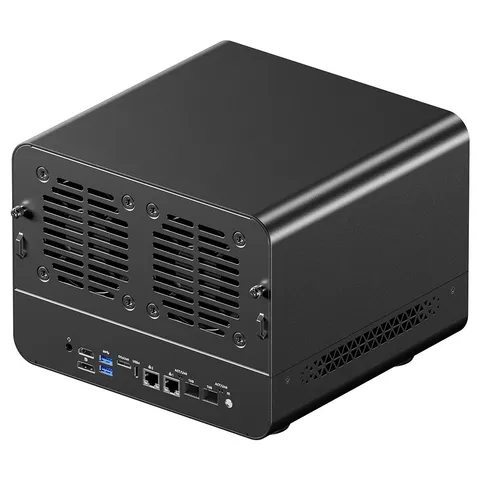

Two Intel X710 10GbE SFP+ ports and two 2.5GbE ports make for a fast network. There’s also USB4 at 40 Gbps, two USB 3.2 Gen 2 ports, HDMI and an SD card slot.
38845HS and OCuLink
The 4 nm Zen 4 Ryzen 7 PRO 8845HS with Radeon 780M runs VMs or a media server on top of NAS duties. A rear OCuLink (PCIe 4.0 x4) port takes a graphics dock or more storage.
Key specs
- CPU · GPU
- Ryzen 7 PRO 8845HS · Radeon 780M
- Drives
- Up to 11
- Network
- 2 × 2.5GbE · 2 × 10GbE SFP+
- Ports
- USB4 · OCuLink · HDMI · SD
- Weight
- 4.8 kg
- Ships from
- EU warehouse
Good pick if
- You want to build your own photo and video backup NAS
- You run a homelab on 10GbE
Think twice if
- You want a finished box with memory and drives included
FAQ
Is there a promo code?
Yes. Enter 26BTS01 at Geekbuying checkout when buying the AOOSTAR WTR MAX 11-Bay NAS Mini PC Barebone for 6% off. Conditions: max $20 · orders over $50 · until 2026-10-31.
What’s in the box?
The mini PC, a power adapter, an HDMI cable and a user manual. It’s a barebone, so no memory or storage is included.
What power adapter does it use?
A 19 V, 14.7 A (279.3 W) adapter into the DC input.
